Product Description

DESCRIPTION:



YMQ series trademark punching machine is mainly used for cutting all kinds of special-shaped trademarks, such as all kinds of wine, food and beverage labels, and can also be widely used for cutting all kinds of playing cards, aluminum plastic bags, greeting cards, instant noodle covers, notebooks, credit cards, tags, brochures and other special shapes of children's reading card books.

The machine adopts the hydraulic system, which is stable and reliable, the surface of die-cut products is bright and clean, the size is uniform, neat, and the efficiency is higher; there are photoelectric eyes on the left and right, which is safer to use; the loading platform can be adjusted before and after the left and right and as a whole, which is more convenient to use.



Technical parameter:

Model

YMQ-200

YMQ-260

YMQ-350

Max.Die-cut Area

200x220mm

290x290mm or(300x240)

350x350mm or (380x300)

Min. Die-cut Area

55x55mm

60x60 mm

90x90 mm

Max.Die-cut height

220mm

260mm

310mm

Piston rod diameter

Φ60mm

Φ80mm

Φ90mm

flow

25 L/min

37 L/min

37L/min

Die-cut pressure

5T

8T

11T

Working speed

80mm/s

65mm/s

50mm/s

Power

5HP/3.75KW

7.5HP/5.6KW

7.5HP/5.6KW

Voltage

380V

380V

380V

Overall dimension

2200x850x1650 mm

2450x1000x1800 mm

2600x1100x1900mm

Weight of machine

900kg

1600kg

1900kg

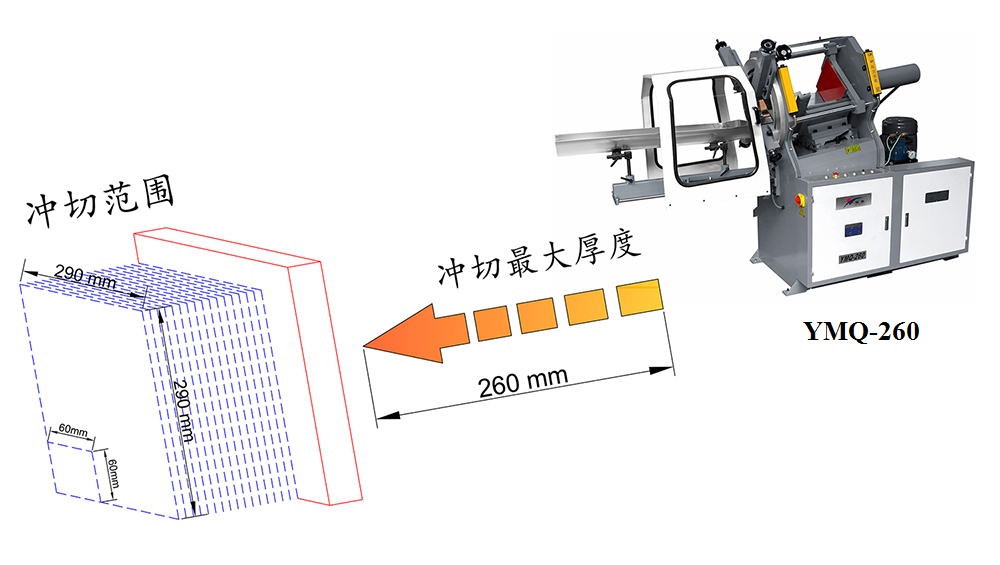

Cutting area and height:

Machine photo:

Sample photo:
