You’re looking at a roll of coated paper at one end of the production line and finished cups coming out the other. Between them is a sequence of precisely timed operations—feeding, sealing, bottom forming, curling—all happening in a fraction of a second.

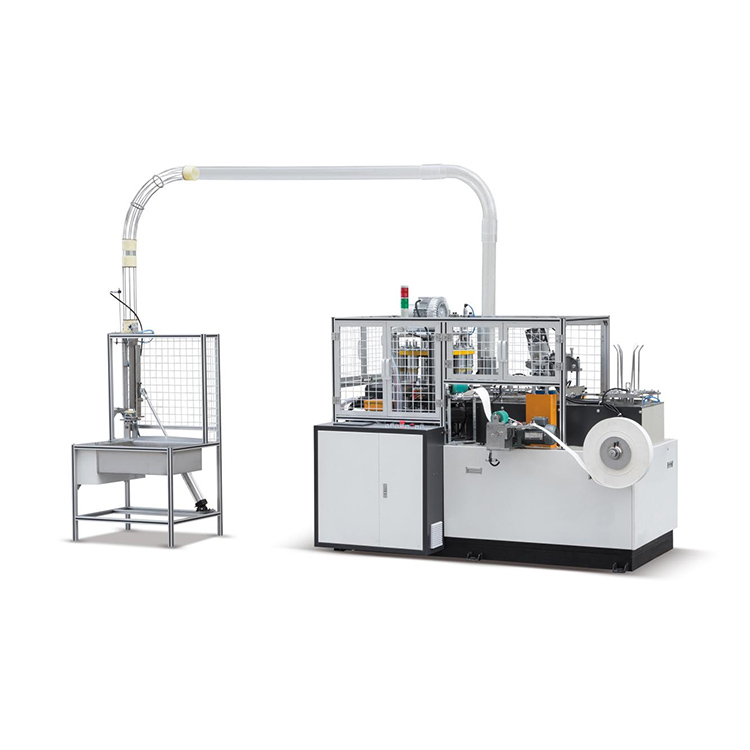

A Paper machinery solution like the DP-16 Automatic Paper Cup Machine (with gear driving) is designed to handle this process efficiently. The gear drive system, which uses a main motor to drive the entire machine through a combination of gears and cam mechanisms, eliminates the loose gap issues common with chain drives and reduces maintenance requirements.

This guide walks you through how a paper cup machine works, the key technical specifications that determine performance, and the factors to consider when selecting equipment for your production line. For paper cup manufacturers and equipment buyers, this is a practical look at the technology that turns raw material into finished product.

The Forming Process – From Roll to Cup

The paper cup forming process is a fully automated sequence of operations that transforms coated paper into finished cups.

Paper Feeding and Side Sealing

The process starts with fan-shaped paper blanks being fed into the machine. The side seam is sealed using either heater-based or ultrasonic sealing technology, creating the cylindrical body of the cup. High-quality sealing technology ensures strong seams without leakage or deformation.

Bottom Forming

The bottom of the cup is formed through a multi-step process: the bottom paper is fed, preheated, folded, and then knurled to create a secure seal. The DP-16 uses silicone oil lubrication to keep the forming station running smoothly.

Top Curling and Discharge

The final step is curling the top edge of the cup to create a smooth drinking rim. Once the top curling is complete, the finished cup is discharged from the machine.

Gear Drive vs. Chain Drive – Why It Matters

The drive system is the backbone of any paper cup machine. The DP-16 uses gear drive technology, which offers distinct advantages over traditional chain drives.

The Gear Drive Advantage

Gear drive systems use a main motor to power the entire machine through a combination of gears and cams. This eliminates the “loose gap” issues that can develop in chain-driven systems over time. The result is more consistent operation, less maintenance, and longer machine life.

Reduced Maintenance and Downtime

Chain drives require regular tensioning and eventual replacement. Gear drives, by contrast, are sealed and lubricated systems that maintain their precision over thousands of operating hours. For a production line where downtime is costly, this is a significant advantage.

Improved Machine Stability

The gear drive design contributes to overall machine stability. When the machine runs smoothly, the forming process is more consistent—and consistent forming means fewer rejects and higher output quality.

Key Specifications of the DP-16

The technical specifications of the DP-16 determine what it can produce and how fast it can run.

Cup Size Range

The DP-16 supports cup sizes from 3oz to 16oz, with mold exchangeability. This range covers everything from small sample cups to medium-sized beverage cups.

Production Speed

The machine runs at 70-90 pieces per minute. At the top end of that range, a single machine can produce over 5,000 cups per hour—sufficient for small to medium-scale production operations.

Paper Weight Compatibility

The DP-16 handles paper weights from 150-350g/m², with a tolerance of ±20g/m². This range covers single PE coated and double PE coated paper, giving operators flexibility in material selection.

Specification DP-16
Cup Size Range 3oz – 16oz
Production Speed 70-90 pcs/min
Paper Weight 150-350g/m² (±20g/m²)
Drive System Gear drive
Voltage 380V/50Hz, three phase

What to Look for When Choosing a Paper Cup Machine

Selecting the right machine for your production needs requires evaluating several factors beyond just the price tag.

Production Volume Requirements

The DP-16 runs at 70-90 cups per minute. If you need higher output, consider a high-speed model. If you’re starting with smaller volumes, this speed range provides a good balance of throughput and cost.

Cup Size Flexibility

Mold exchangeability allows you to switch between different cup sizes. The DP-16 supports 3oz to 16oz, covering most common cup sizes for beverage and food service applications.

Sealing Technology

The DP-16 can be configured with heater-based or ultrasonic sealing. Ultrasonic sealing is glue-free and environmentally friendly, making it an attractive option for manufacturers focused on sustainability.

Maintenance and Support

A reliable machine is only as good as the support behind it. Changs International focuses on precision manufacturing and uses high-quality materials to ensure durability.

Questions Equipment Buyers Ask

What is the difference between gear drive and chain drive in a paper cup machine?

Gear drive uses gears and cams to transmit power from the main motor to all moving parts. It provides more precise timing, eliminates the loose gap that develops in chain drives, and requires less maintenance. Chain drives stretch over time and need regular tensioning and eventual replacement. Gear drives are sealed and lubricated, maintaining precision over thousands of operating hours.

How long does it take to change molds for different cup sizes?

Mold exchange times vary by machine design. The DP-16 supports mold exchangeability for cup sizes from 3oz to 16oz. The specific changeover time depends on the machine’s design and the operator’s experience. Look for machines with quick-change features if you frequently switch between cup sizes.

What paper types can the DP-16 process?

The DP-16 handles single PE coated and double PE coated paper. Paper weight should be between 150-350g/m². Using the correct paper weight and coating type is essential for achieving consistent sealing and forming quality.

Why Changs International Is a Trusted Name in Paper Machinery

Changs International has been supplying paper machinery to manufacturers worldwide, with a focus on precision engineering and reliable performance.

Changs International is an experienced exporter that brings together more than ten manufacturers to provide a comprehensive range of paper machinery. Their product line includes paper cup machines, paper bowl machines, and paper plate machines. Each piece of equipment is designed with precision, using high-quality materials to ensure durability.

The DP-16 Automatic Paper Cup Machine (with gear driving) reflects this commitment to quality. The gear drive system provides reliable, low-maintenance operation. The multi-station design handles the complete forming process—paper feeding, side welding, bottom forming, top curling, and cup discharge—in a single automated sequence.

For manufacturers entering the paper cup market or expanding their production capacity, the DP-16 offers a proven combination of speed, flexibility, and reliability. Supported by Changs International’s network of suppliers and technical expertise, it’s a machine built to perform.

Ready to explore the DP-16 for your production line? Reach out to Changs International’s team—they can provide detailed specifications, mold options, and production recommendations based on your specific cup requirements.
