Product Description



Description

1. The flexo printing machine adopts the anilox rollers to spread ink. which is characterized by wearable, rust-resistant and long using life, etc. It can improve the printing efficiency.

2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type.

3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.

4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.

5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.

6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.

7.Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.

8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.

The machine can finish material-feeding, printing, varnish, drying, laminating, rewinding and die-cutting in one process is an ideal machine for printing note and top-grade adhesive label.



♦ Main Technical Specifications:

Specification

Model

HZ320-8

Max feeding width

330mm

Printing width

320mm

Effective printing length

222~622 (70Z~196Z)

Speed

10-150m/min

Unwinding diameter

1000mm

Rewinding diameter

1000mm

Gear pitch

1/8 CP, Z=3.175mm

Plate thickness

1.14 or 1.7 optional

Double-sided thickness

0.38mm

Material weight

Paper 30-300 gsm, PET 12~60um, OPP 18~60um

Secondary registration precision

+/- 0.15 mm

Remote control

Equipped with remote diagnosis and remote service functions

Anilox roller

8 pcs (to be determined according to customer product specifications)

Second set position

Precision ±0.15mm

Electric Control System

Omran (Japan)

Servo Control

PANASONIC

Remote Control

Equipped with remote diagnosis and remote service functions



♦ Standard Configuration:

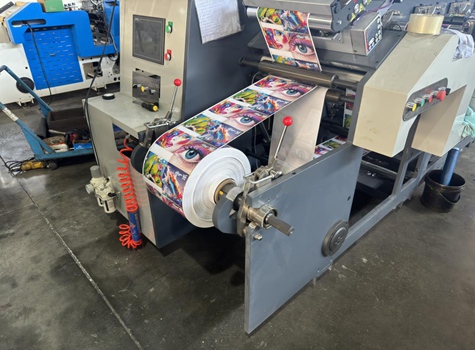

1. Unwinding Unit

• 1 Set Servo Motor (3kw) Used To Drag Paper

• Magnetic Powder Brake--- cooperated with Tension Control System.

• Max unwinding and rewind material diameter: 800m

• 3 inch Air Shaft

• air inflating automatically

• pneumatic upload



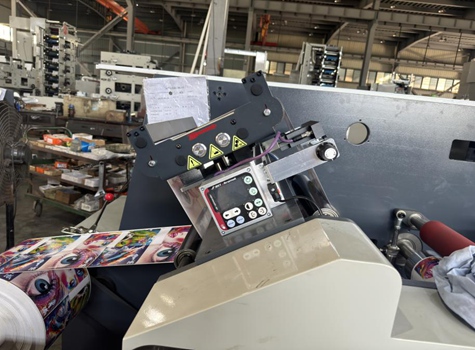

2. Auto Web Guiding System

• One set of paper splice table, With Pneumatic Holders

• Detection mode: Ultrasonic Sensor

• Precision：±0.1mm

• BRAND: BST

• Test method: Edge

• Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised.



3. Tension Control System and Configuration

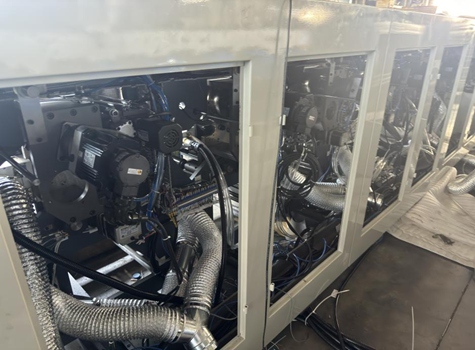

• servo motor system

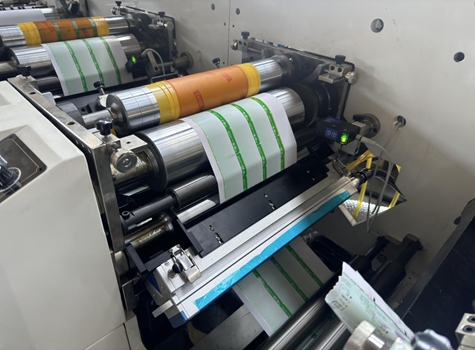

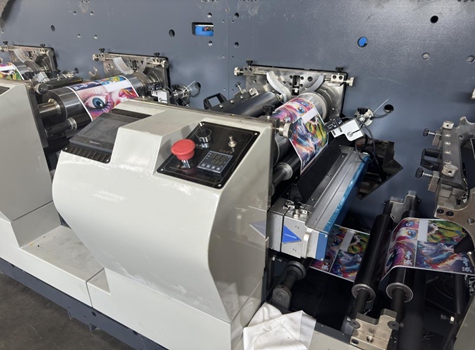

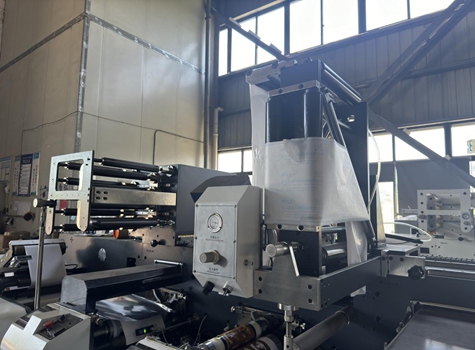

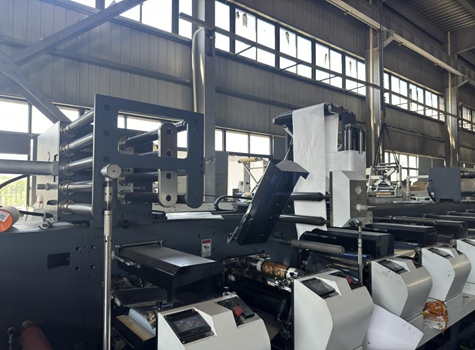

4. Printing Color Unit---8 units

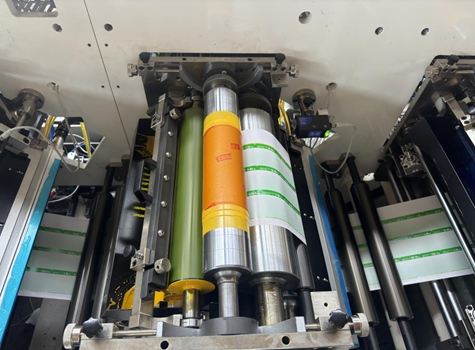

• Flower type, can quickly change printing cylinder and anilox

• 7 Set Servo Motor (2kw), 1 Set Per Unit

• 5 Set Mark Detect Sensor (from 2nd station to 8th station)

• Printing Width: 320mm

• Max Printing Area: 320*600mm

• Printing repeat range: 180-600mm

• Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Container.

• Helical Gear

• The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.

• Anilox Cylinder Pneumatic Clutch to leave plate from ceramic anilox cylinder when machine is stop. It can protect the printing plate.

• Ceramic anilox roller---1 set(8 pcs). It is in standard. You can choose more

• Printing cylinder---3 set (24pcs). It is in standard. You can choose more.

• Ceramic anilox roller: LPI can be chosen from 150LPI --- 1000LPI

• Printing cylinder: Circumference can be chosen from 180mm --- 600mm

• Doctor blade

• Gear：cp1/8

• Automatic printing plate cleaning function: After the screen roller is released from pressure every time the machine stops, the plate roller continues to rotate for 1.5 seconds to transfer the ink on the printing plate to the paper to keep the printing plate clean.

• Full runout of anilox roller, plate roller and bottom roller: ≤0.003mm



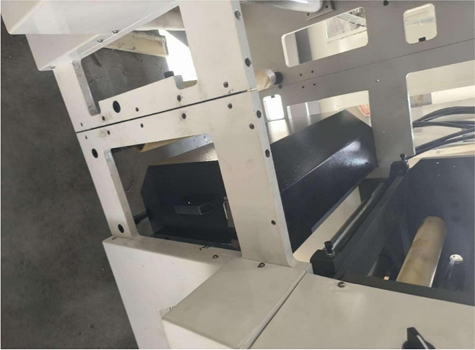

5. IR Drying Unit / UV/LED UV Drying Unit (Optional) -----ACCORDING TO YOU CHOOSE

• Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven.

• Infrared Heating Drying Oven is placed on material and after each printing station.

• Imported Heating Lamb is fixed in each Infrared Heating Drying Oven.

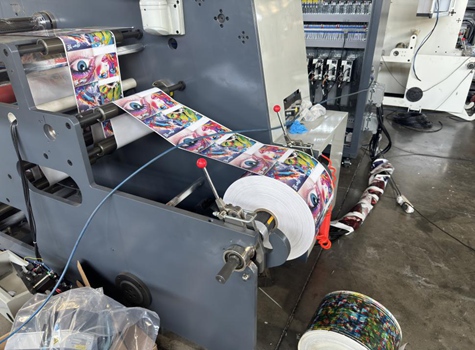

6. Rewind Unit

• 1 Set Servo Motor Used to Drag Paper

• Max rewind material diameter: 1000mm

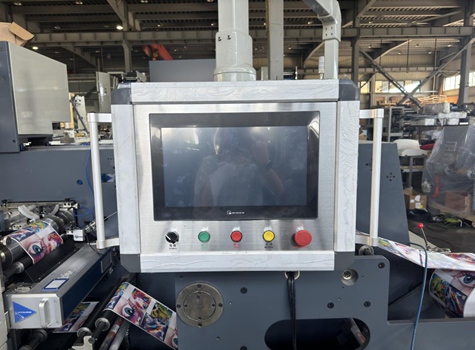

7. Control Panel

• Power Supply, Stop Button, Start Button and Emergency Stop.

• PLC CONTROLLER & TOUCH SCREEEN

• Anilox Roller Rotation Button for each Printing Station.

• Length Counter and Speed Controller

• each color with seperate touch screen, with different country language as customer request.

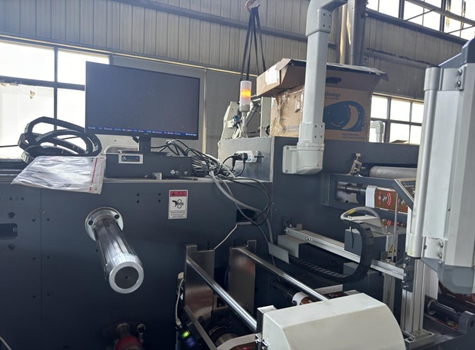

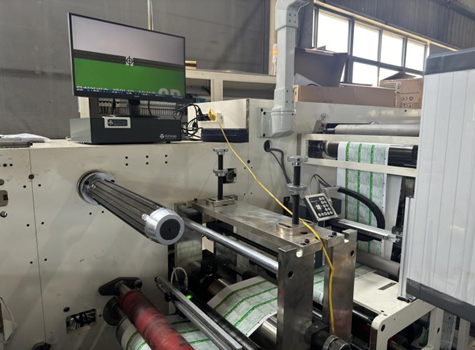

8. VIDEO MINTOR:



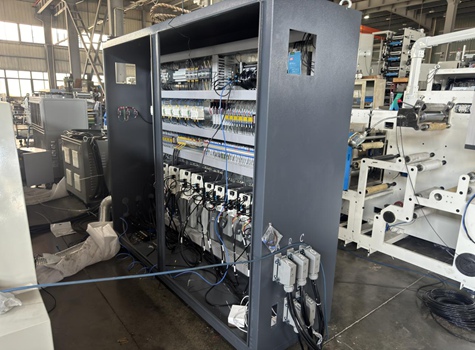

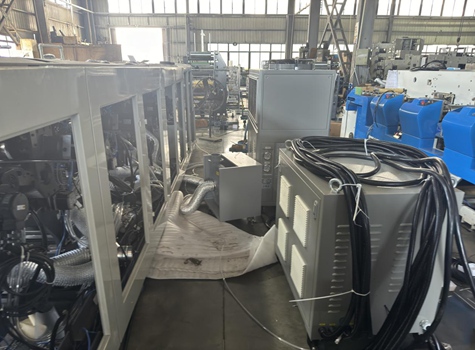

9. Electric parts：



◆ Optional Configuration:

1. Die Cutting Unit

• Gear：cp1/8

• 1 Set Servo Motor Per Die Cutting Station

• Cooperated with Magnetic Cylinder and Flexible Dies Sheet. But they need customization, according to your label size. They are not including in this price.

• 3 inch air shaft for Matrix/Waste Rewind (it can change other size air shaft, 1-inch, 1.5-inch, 2-inch, 3-inch



2. Slitting And 2 Rewind



3. sheeting station  (With Servo Motor)



4. Turn Bar (Movable, double side printing）



5. Delam/Relam Unit



6. Cold Stamp Unit (Unwind + Rewind)



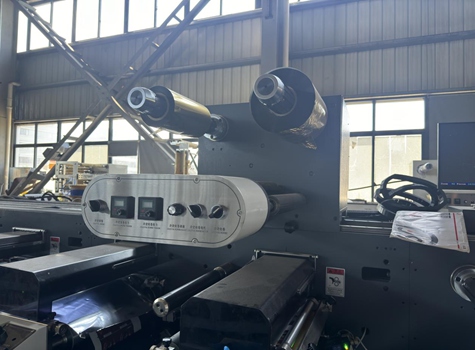

7. LAMINATION

•  3 inch air shaft

• Feed by Motor

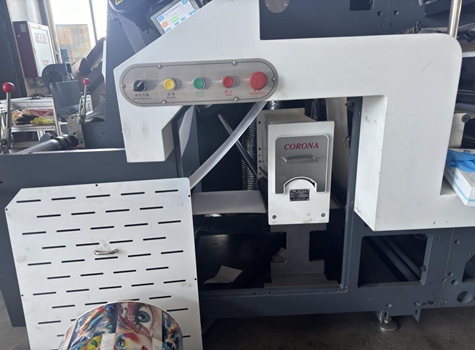

8. Corona Treatment (for aluminum foil)



9. Electric load for magnetic cylinder



Business term:

Price term: FOB(Ningbo)

Price valid period: 1 month

Packing: Export Standard Package

Payment: T/T in advance, 40% deposit for confirmation, the balance should be paid before shipment.

Production time: 60 days after deposit reached.

Warranty: One-year guarantee, defective spare parts can be replaced for free charge by post.

Installation: the charge (accommodation, food and round air-tickets, visa 100USD/day salary) shall be paid by the buyer in case need technician installation. Due to pandemic situation in the world can’t send technician oversea, only can provide online support.
