Product Description

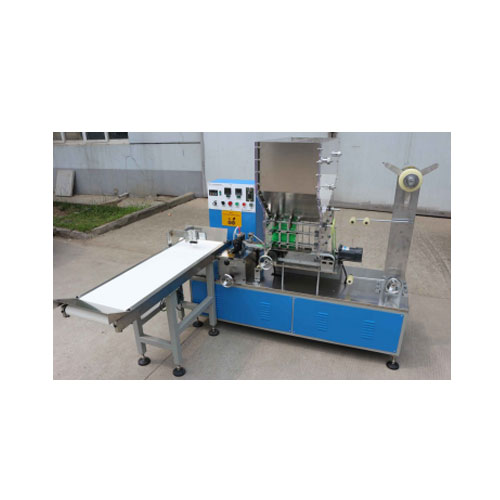

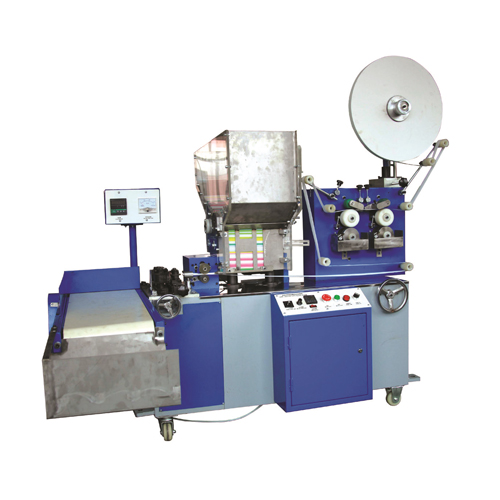

SSP031-2C series automatic high-speed single-film (paper) packaging machine is a device that automatically packs drinking straws into in 3 sides sealing bags. The whole machine is composed of a drive motor, a transmission system, a film (paper) unwinding device,a printing device(Paper printing), a straw filling device, an automatic sealing device, a product conveying device.The machine is developed by my technical staff and has a high degree of automation and production speed. Filling and packaging are completed at one time.

Characteristics:
1.Having 2 or 3 colours printing device can be chosen.
2.With automatic product counting function, product quantity may pre-set, once the pre-set value is reached, the machine will give an alarm.
3.Printing, feeding, and packing can complete in one processing.
4.Packing straw length is adjustable within a certain range.

Printing unit:
1.Bopp cant print by this machine ,you should print LOGO on bopp film ready in other machine, Then pack the straw into the bags.
2.Paper Material can be printed on machine directly.And the machine will pack straw in paper bag after printing.

Technical parameter：

SSP031-2C
5(±1),10(±2)
(flexible/straight straw)
100-250(±20) Range is optional according to required of client
100-250mm (No printing)
150-205mm(Need printing,the length differece should less 50mm)
Different length straw need to change some spare part .
Paper/BOOP film,3 sides sealing ,width 25mm-30mm
＞300 packages/min
1.5Kw(3PH/220V/60HZ)
(L×W×H)1900×1000×1600mm
400Kg

 Electric component list：

Name Specification Brand
Motor 0.75kw CHINA
Inverter 0.75kw Delta ,Taiwan
AC contactor - Schneider,France
Circuit Breaker, - Schneider France、
Knob Button Switch   DELIXI china
Thermostat - Huibang ,china
Solid state contactor - Meiger,Taiwan
Bearing - NSK Japan、Haerbin China
Cylinder，electromagnetic valve - AirTak,Taiwan

 Spare part with machine：

NO Name Specification QTY Remark
1 Copper fork - 20pcs Total:1Set
2 Blade SKS-80x9x0.4mm 2Box
3 Blade clamp - 1PC
4 Knife back - 1PC
5 Discharge port stopper - 1PC
6 Rewind board - 1PC
7 Heating bar - 1PC

 TOOL：

NO Name Specification QTY Remark
1 Tool box - 1PC Total:1Set
2 Allen wrench 43169 1PC
3 Double head wrench 43334 1PC
4 Adjustable wrench 200mm 1PC
5 Phillips screwdriver 200mm 1PC
6 Slotted screwdriver 200mm 1PC
7 Long nose pliers 160mm 1PC

 Packing products photo:
