HXL-K Granule Packing Machine
Application:
It is suitable for packing granular materials without stickness, such as seed, coffee, drier,sugar, etc.
Features:
1.Pamameters(such as bag length, volume, speed ) can be set and displayed on the touch screen. And touch screen has English, Chinese, Russian, Spanish language.
2. Bag-making, metering, filling, sealing, cuttng, counting and batch munber printing can be finished one time
Parameters:
|
Model |
HXL-K100 |
SJIII-K100 |
HXL-K300 |
SJIII-K300 |
|
Drive type |
mechanical |
pneumatic |
mechanical |
pneumatic |
|
Bag making length |
40-150mm |
40-150mm |
50-300mm |
50-300mm |
|
Bag making width |
30-120mm |
30-120mm |
50-380mm |
50-380mm |
|
Bag sealing style |
Three-sides or four-side or back side(you can only choose one style) |
Three-sides or four-side or back side(you can only choose one style) |
Only back sealing available |
Three-sides or four-side or back side(you can only choose one style) |
|
Packing capacity |
5-100ML |
5-100ML |
50-500ML |
50-500ML |
|
speed |
40-60bags/min |
40-60 bags/min |
30-50 bags/min |
30-50bags/min |
|
Power |
2.4kw |
1.4kw |
2.4kw |
1.6KW |
|
Air supply |
/ |
0.6Mpa; 100L/min |
/ |
0.65Mpa; 100L/min |
|
Dimension |
800*1000*1800mm |
800*1000*1800mm |
1000*1200*2200mm |
1000*1200*2200mm |
|
weight |
400kg |
300kg |
580kg |
480kg |
|
Packing materials |
PET coated with PE; PET aluminum coated with PE; paper coated with PE or other heat-sealing composite materials |
|||
|
Packing film thickness |
0.04-0.08mm |
|||
|
Min. Inner diameter of film roll |
75mm |
|||
|
Max. Outer diameter of film roll |
320mm |
|||
Standard configuration:
Fluid feeder
 |
 |
 |
| Granule feeder | Touch screen, which can choose English, Chinese, Russian, Spanish language |
Color tracking sensor |

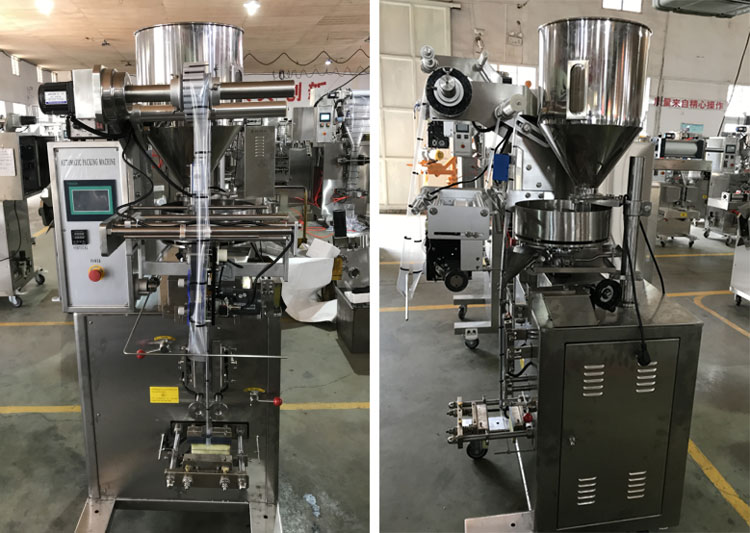

Machine display:
